Secondary Suite Legalization BC

Secondary Suite Legalization
Drawings & Permits BC

Transform unauthorized basement suites into fully permitted, safe, and insurance-protected living spaces. We navigate BC Building Code Part 9 requirements, fire separations, and municipal approval with clear, fixed pricing.

The 4-Step Suite Legalization Process

How we move your unauthorized suite from municipal risk to a fully legal, revenue-generating property asset.

StepKey ActivitiesPrimary Deliverable
1. As-Built Code AuditWe measure the existing suite via 3D LiDAR, inspect ceiling heights, egress windows, door widths, and verify legal FSR/zoning allowance.Suite Deficiency & Feasibility Report
2. Fire & Sound Separation DesignWe specify required 45-min or 1-hour fire separations (Type X drywall, resilient channels, rockwool insulation) and STC acoustic ratings.Fire Separation Detail Drawings
3. Mechanical & Egress PlansWe draft interconnected smoke/CO alarm systems, dedicated HVAC/heating controls, plumbing tie-ins, and exterior egress stairs.Complete building permit package
4. City Submission & OccupancyWe submit the permit package to your municipality, handle plan checker revisions, and guide you through final inspection sign-off.Approved Building Permit & Occupancy

Project Roadmap & Scope of Work

Operating an unpermitted basement suite carries serious risks: municipal fines, tenant displacement orders, and voided property insurance in the event of a fire or flood.

Legalizing an unauthorized suite brings it into full compliance with Part 9 of the BC Building Code and local zoning bylaws, protecting your property value and securing permanent, legal rental income.

Select a phase below to jump to the details

  1. 1
    As-Built Code Audit
  2. 2
    Fire & Sound Separation Design
  3. 3
    Mechanical & Egress Plans
  4. 4
    City Submission & Occupancy

Key Compliance Requirements for BC Secondary Suites

Code Mandates

1. Fire & Sound Separation

Continuous 45-min or 1-hour fire separation between the suite and the main house:

  • 5/8" Type X drywall with resilient channels
  • Mineral wool acoustic batt insulation
  • 20-min or 45-min solid-core self-closing doors

2. Emergency Egress & Exits

Unobstructed bedroom escape routes meeting strict BCBC minimums:

  • Min opening area of 0.35 m² (3.77 sq ft)
  • Min dimension of 380 mm (15 in)
  • Window wells extending 550 mm (22 in)

Step 1: As-Built Code Audit

Phase 01

We conduct a precise on-site 3D LiDAR survey of your home to record existing wall locations, ceiling joist depths, bedroom window dimensions, and plumbing stacks.

Step 2: Fire & Sound Separation Design

Phase 02

We draft compliant building sections specifying the exact drywall, insulation, and resilient channel assemblies required to satisfy your municipal building inspector.

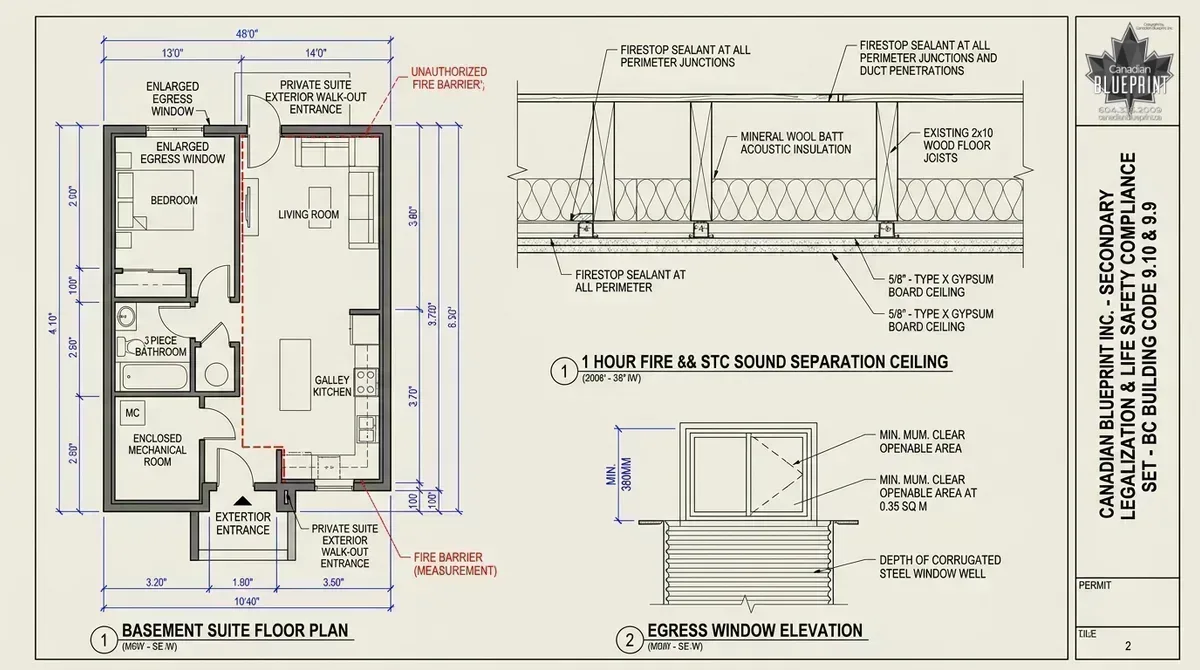

Secondary suite legalization architectural CAD blueprint detailing 1-hour fire separation ceiling assembly, STC sound rating, and bedroom egress window elevation
Technical Drawing: Secondary Suite Fire Separation & Life Safety Compliance Building permit plan detailing basement suite layout with private walk-out entry, 1-hour fire and STC sound separation ceiling assembly (5/8" Type X gypsum board with resilient channels and mineral wool batt), and BC Building Code 9.9.10.1 compliant bedroom egress window well dimensions.

Step 3: Mechanical & Egress Plans

Phase 03

We map out compliant emergency exit routes, window enlargements (if needed), interconnected smoke/CO alarms, and coordinate independent heating controls.

Step 4: City Submission & Occupancy

Phase 04

We submit the complete building permit package to your municipality, handle plan checker comment letters, and support you through final occupancy sign-off.

Ready to Legalize Your Secondary Suite?

Get Started

Canadian Blueprint delivers forensic as-built measuring, fire separation engineering, and permit-ready drawing packages to legalize basement and garden suites across British Columbia.

Prefer the process first? Read the 8-step approval guideStop Work Order Resolution.

Canadian Blueprint Logo

Canadian Blueprint Inc.

BC Building Design & Permit Drawings

Back to Residential Stop Work Orders
Next Steps

What to Send Us

To assess your suite's legalization requirements and get an upfront quote, please provide:

Property Address

Your civic address so we can check municipal zoning, suite allowances, and utility records.

Current Suite Status

Let us know if the suite is existing/tenanted, partially built, or currently cited under a municipal notice.

Existing House Drawings

Any original house plans, builder drawings, or past permit records if available.

Interior Photos

Photos of the suite kitchen, bedroom windows, electrical panel, and furnace/utility room.

FAQ

Frequently Asked Questions

Common questions about secondary suite legalization costs, fire separation, and municipal requirements in BC.

A Stop-Work Order is a municipal notice requiring you to cease construction immediately because of unauthorized work or non-compliance with the BC Building Code. If you receive one, stop all physical work right away, request a written Deficiency Report from the building inspector, and pull your original blueprints from city archives. Follow our step-by-step DIY Stop Work Order Resolution Guide to understand the immediate triage steps to protect your property.

No. In British Columbia (under both the Vancouver Charter and the Local Government Act), zoning variances through the Board of Variance apply strictly to physical siting constraints (such as setbacks, building height, or parcel depth) caused by proven physical site hardship. The Board has no authority to grant relief for Floor Space Ratio (FSR), density, or use restrictions. If unpermitted construction (such as an enclosed garage or infilled floor void) exceeds maximum permitted FSR, it cannot be legalized via a variance and must be reconfigured or removed to comply.

A Stop Work Order is a written directive issued by your local building department that legally requires all construction activity on a property to cease immediately. It is typically posted as a red notice on the site — nicknamed a Red Tag. It is issued when work has begun without the required permits, when permitted work has substantially deviated from approved drawings, or when unsafe conditions are observed during an inspection.

Your first step is to stop all work immediately — continuing after a Stop Work Order is issued can result in significantly increased fines and penalties, and it makes resolution more difficult. Then contact a professional who can document the existing work and prepare a plan for resolution. Read our DIY Stop Work Order Resolution Guide for your immediate 5-step action plan.

In most cases, no — full demolition is not the city's goal. Building departments generally want unpermitted work brought into code compliance, not destroyed. Whether any demolition or removal is required depends on whether the existing structure can meet the BC Building Code and local zoning bylaws.

If the unpermitted work meets or can be upgraded to meet code (such as secondary suites needing insulation or fire separation), the city allows a retroactive permit. However, partial removal or structural alteration is required if the unauthorized work exceeds maximum Floor Space Ratio (FSR), encroaches into mandatory setbacks with no hardship variance possible, or builds over statutory rights-of-way (SRWs) or environmental protection zones. Our forensic audit identifies exactly what can be legalized and what must be modified.

Infilling double-height foyers or living rooms ('open to below' areas) converts non-counted void space into habitable floor area, which counts 100% against your property's Floor Space Ratio (FSR). If the home was already built to its maximum allowable density, flooring over that void creates an illegal FSR violation.

Because municipalities cross-reference unpermitted work against the original archive record drawings and the Board of Variance has zero power to grant FSR increases, the city will require reopening the floor void or removing floor area elsewhere to restore zoning compliance. We audit original plans to prevent you from being caught off guard.

No. In British Columbia, unauthorized construction gains zero legal or 'grandfathered' standing simply because it was built years ago or under an older zoning schedule (such as RS-1 instead of current R1-1). When a retroactive permit application is submitted, the city evaluates the entire property against current zoning bylaws and the current BC Building Code.

Any unpermitted structures that exceed current density caps, breach mandatory setbacks, or encroach into statutory rights-of-way must be brought into compliance with today's standards or removed. Our feasibility review determines your actual legal baseline before you commit to municipal applications.
