Our 8-Step Permit Design Process in BC

From feasibility review to AHJ revisions, this is how we develop and coordinate permit-ready drawings for your project.

Design Process Overview

A quick summary of each stage in our permit drawing process.

StepKey ActivitiesPrimary Deliverable
1. Feasibility StudyAnalyze project requirements for Building Code and Zoning Bylaw compliance.Initial feasibility guidance (free)
2. As-Built DocumentationMeasure and document the property and building to produce as-built drawings.As-built drawing package (deposit required to start)
3. Existing Plan Redraw & Client ReviewRedraw existing floor/site plans and review proposal direction with the client.Verified existing-condition plans and discrepancy review
4. Proposed Plans & Code AnalysisDevelop proposed plans and complete code checks for compliance.Code-aligned proposed design set
5. D Walkthrough & RenderingsCreate 3D walkthrough and renderings for client visualization.Visual design package
6. Permit Drawing PackagePrepare complete building permit drawings for submission or consultant review.Permit drawing set
7. Professional Coordination & SubmissionCoordinate required registered professionals, integrate consultant documents, assist with forms, and support AHJ submission.Coordinated submission package (final payment required at permit drawing issuance)
8. AHJ RevisionsRevise drawings based on AHJ deficiencies and coordinate updates with consultants.Resubmission-ready revised package (same-scope revisions included)

Project Roadmap & Scope of Work

Select a phase below to jump to the details

  1. 1
    Feasibility Study
  2. 2
    As-Built Documentation
  3. 3
    Existing Plan Redraw & Client Review
  4. 4
    Proposed Plans & Code Analysis
  5. 5
    3D Walkthrough & Renderings
  6. 6
    Permit Drawing Package
  7. 7
    Professional Coordination & Submission
  8. 8
    AHJ Revisions

Overview & Context

Overview

We redraw the existing floor and site plans from client-provided material, then align direction with you before proposal development.

  • Client-provided drawings are reviewed and redrafted.
  • Existing conditions are cross-checked against measured/as-built information.
  • We confer with the client on project direction and disclose any discrepancies identified.

Step 1: Feasibility Study

Phase 01

Once existing conditions are confirmed, we proceed with proposed plans and code compliance review.

  • Preliminary proposed plans are developed and refined.
  • Code analysis is completed to confirm proposal compliance.
  • Plan coordination is carried forward toward permit-level documentation.

Step 2: As-Built Documentation

Phase 02

We create visual tools so you can understand the design intent before final permit drawings are issued.

  • 3D walkthrough models are prepared.
  • Renderings are generated for client visualization and decision support.

Step 3: Existing Plan Redraw & Client Review

Phase 03

We prepare the technical drawing set for permit submission and/or professional consultation.

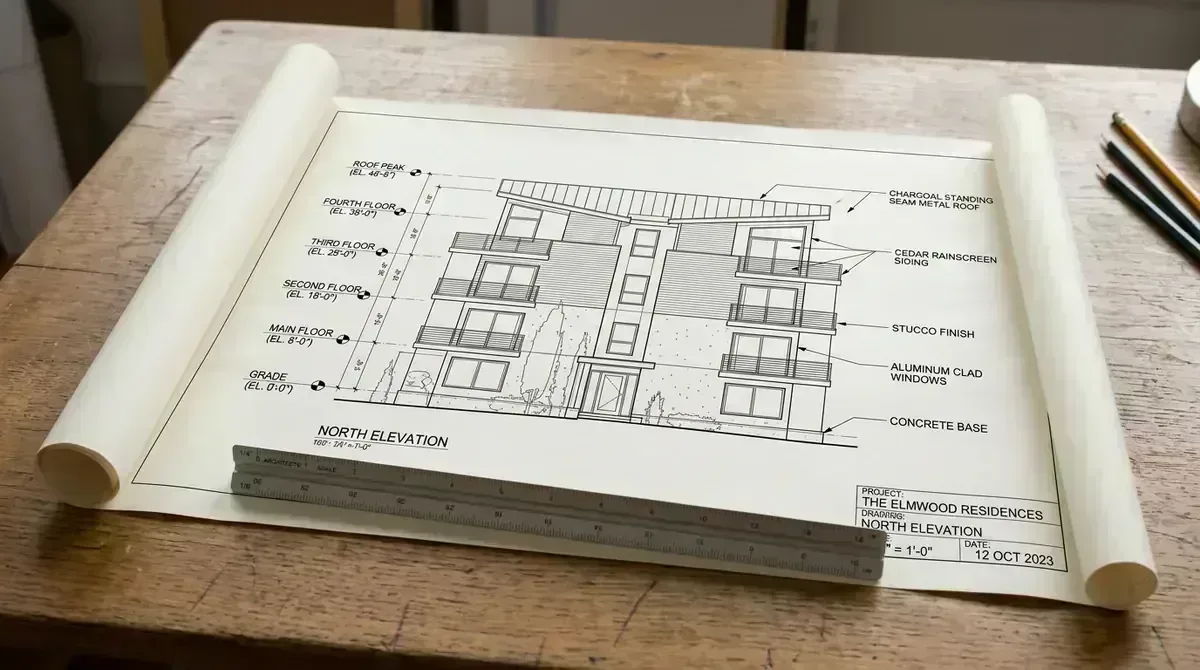

Permit Design Package building permit drawing set featuring building elevations and floor plans for municipal permit application
Permit-Ready Drafting Standards: Comprehensive 2D building elevations, floor plans, and spatial code schedules drafted in full compliance with BC Building Code Part 9.
  • Permit-ready plans are detailed and assembled.
  • Drawing packages are structured for AHJ review.
  • Consultant-facing materials are prepared as required (for example, Structural Engineer coordination).

Step 4: Proposed Plans & Code Analysis

Phase 04

We delegate drawings to required registered professionals and coordinate all documents into one submission pathway.

  • Plans are sent to project consultants for their official documents.
  • Consultant timelines and fees are managed by those consultants and are outside our control.
  • Our drawings are coordinated with consultant deliverables once returned.
  • We assist with application forms.
  • Owner or contractor submits application drawings and schedules to the AHJ.

Fee note: Final payment is required for issued permit drawings.

Step 5: 3D Walkthrough & Renderings

Phase 05

After AHJ review, we revise documents based on deficiency comments and coordinate updates with other professionals where needed.

  • AHJ comments are reviewed and translated into actionable drawing updates.
  • Related consultant documents are coordinated for consistency.
  • Revised packages are prepared for resubmission and approval.

Revision note: All revisions within the same original scope are included in our initial fee.

Step 6: Permit Drawing Package

Phase 06

We prepare building permit drawings. For projects that require one, we collaborate with a registered architect of your choice or can recommend one.

A single-family house or a renovation that stays outside reserved practice does not require a registered architect. Under the Architects Regulation, reserved work includes a residential building with 5 or more dwelling units, Group D, E, F2, and F3 occupancies over 470 m² gross area, assembly occupancies, and alterations that affect exiting or fire separations.

Canadian Blueprint Inc. services are provided under the Applied Science Technologists and Technicians Regulation, B.C. Reg. 12/2021, and the applicable codes of ethics. The principal is an ASTTBC Certified Technician (CTech). Canadian Blueprint Inc. carries liability insurance with a limit of $250,000 per claim.

Step 7: Professional Coordination & Submission

Phase 07

Want to see what drawings we include? Click here to review our code-compliant drawing scope.
